冲击试验箱

ETS Series Temperature Shock Test Chambers

ETS系列温度冲击试验箱

Temperature shock testing that subjects a product to alternating extremes of high and low temperatures in order to observe changes in product characteristics and failure occurrence caused by different materials and their thermal expansion coefficients. ETS Series Temperature Shock Test Chambers are able to place their product inside the product carrier and observe as the product automatically is transferred between two or three separately controlled temperature zones, Can also use Air-moved damper exchange two or three temperature area, depending on the configuration of chamber chosen. Our temperature shock test chambers realize.

TESTEQ offers" Two-box method" and " Three-box method" of temperature shock chambers capable of meeting a wide variety of testing needs. All the naturally occurring temperature is between -80 ° C and +220 ° C.

温度冲击试验箱是将一个产品置于高温和低温交替极端下测试，以观察产品在不同材料下的应力变化而引起的故障。ETS系列设备是将产品置于载体内，自动将产品转入两个或三个独立的温度区域，也可以通过风门切换达到高温区和低温区的转换，实现温度冲击试验。

TESTEQ公司提供两厢式和三项式温度冲击试验箱，能满足客户的不同需求，所有试验箱均能实现温度在-80℃～220℃的模拟温度。

Standard Features标准配置

■Non-metallic thermal break around the doorframe keeps extreme temperatures in the chamber from being transferred to the exterior.

■One diameter φ50mm hole，includes one flexible silicone plug.

■Adjustable stainless steel shelf, with heavy-duty support rails, holds 20 kg.

■Heavy-duty casters have integrated adjustable feet for level-ing and fixing the unit.

■Residual current circuit breaker of main power supply

■Illuminating lamp(Two-box method), over temperature protection setting device, emergency switch, run indicator, failure indicator, buzzer

■Fit with 4 electrothermal condensation-proof 4-layer hollow glass observation windows(Two-box method)

■门框及厢框预埋有防露点加热丝，当试验箱内实际温度低于露点温度时，加热系统自动开启，以放置室内极端温度被传递到外部

■一个直径φ50mm的引线孔（两厢式引线孔直径φ30mm），包括一个弹性软胶塞

■可调节的不锈钢货架，重型支撑导轨，标准承重20Kg，加重型承重可达到50Kg

■重型移动脚轮和调节平衡用的重型脚杯

■主电源漏电保护器

■照明灯(两箱式)、超温保护设定装置、急停开关、运行指示灯、故障指示灯、蜂鸣器

■电加热四层中空玻璃观察窗(两箱式)

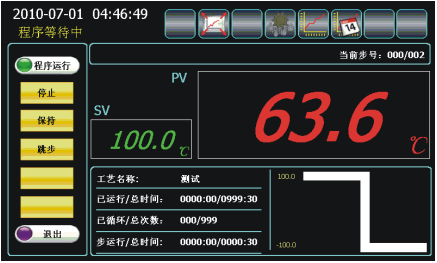

1300 Programmer Touch-screen controller

◆With a brilliant 7" color touch screen display, the powerful 700 Programmer Controller is TESTEQ ready, making operations and data collection easier and more reliable than ever before. Our controller has a Windows look and feel to support familiar and robust operations. The 700 is ethernet-compatible and web-enabled with an Internet-ready front end for virtual anytime/anywhere access. Multi-level, password-based security protects sensitive data. The 700 can be easily retrofitted on-site to existing chambers.

◆Run mode :Program mode, fixed value mode

◆Program capacity :Edit: up to 20 programs, up to 50 steps per program, 20 loops can be set(Each loop step has up to 999 times of loop)

◆Display resolution :Temperature: 0.1℃; time: 0.1 minute

◆Communication function :RS-485 interface, which has local and remote communication functions (it is required to fit centralized monitoring software, RS-485/RS232 converter, it will occupy a COM port and a USB port of PC machine); up to 16 devices can be connected, the cumulative length of cable is up to 800m.

◆Failure alarm and reason, dispose prompt function; power failure protection function; upper & lower limits of temperature protection function; timing function (auto start and auto stop running), self-diagnostic function.

◆7"彩色触摸屏显示器，强大的编程控制系统，操作和数据处理更方便更可靠，我们的控制器具有Windows外观，便于使用，可以与以太网兼容，虚拟网络实现在任何时间和地点对设备访问。多层次数据处理功能。

◆运行方式：程序方式、定值方式

◆程序容量：可编辑：20个程序，每个程序最大50步，可设20个循环(每个循环步最大999次循环)

◆显示分辨率：温度0.1℃，时间0.1分钟

◆通讯功能：RS-485接口，具有本地和远程通讯功能(需配集中监控软件、RS-485/RS-232转换器，需占用PC机的COM口和USB口各一个)；最多可同时连接16台设备，电缆累计长度最大800m

◆故障报警及原因、处理提示功能；断电保护功能；上下限温度保护功能；定时功能(自动启动及自动停止运行)、自诊断功能

Temperature Shock Test Chambers running sketch map

Icon（1）                 Icon（2）          Icon（3）

    Icon（4）               Icon（5）          Icon（6）

●Icon（1）: Three-box method use Air-moved damper exchange two or three temperature area

●Icon（2）: SINGLE CAPACITY (a) (One hot zone & one cold zone).The products under test travel via a vertical lift elevator, alternating between the hot and cold zones.

●Icon（3）: DOUBLE CAPACITY (c)(Two hot zones & one cold zone).

In the two zone, double capacity system, the cold zone is always in use, which contributes to the efficiency of the system.

●Icon（4）: SINGLE CAPACITY (a) (One hot zone & one cold zone). The products under test travel via a carrier basket, alternating between the hot and cold zones.

●Icon（5）: DOUBLE CAPACITY (c) (Two hot zones & one cold zone).In the two zone, double capacity system, the cold zone is always in use, which contributes to the efficiency of the system.

●Icon（6）: SINGLE CAPACITY (b) (One hot zone, one ambient zone & one cold zone)

In the horizontal three zone, the products travel via a carrier basket between the cold and ambient zones, and the hot zone travels to envelop the carrier basket.

●图示一：三箱式温度冲击试验箱，样品放置在测试区，通过风门的切换，实现两温区冲击和三温区冲击试验。

●图示二：两箱式吊篮温度冲击试验箱，一个低温区和一个高温区，通过提篮的上下移动实现温度冲击试验。

●图示三：两箱式吊篮温度冲击试验箱，两个高温区和一个低温区，双容量系统，低温区一直在使用，有助于提升整个系统的效率。

●图示四：两箱式水平移动冲击试验箱，一个高温区和一个低温区，通过载物篮左右移动实现温度冲击。

●图示五：两厢式水平移动冲击试验箱，两个高温区和一个低温区，通过载物篮左右移动实现温度冲击。

●图示六：两箱式水平移动冲击试验箱，一个高温区和一个低温区，通过高温区的移动实现两温区和三温区冲击试验。

（模块五）

Performance is based upon 50 Hz and laboratory ambient conditions of 23.9℃,and may vary slightly at other temperature and humidity levels. Chambers are designed for use under normal laboratory operating conditions.For other applications,please consult TESTEQ.

设备的性能是在50Hz和23.9℃的实验室环境条件下测的，而在其他温度和湿度条件下性能可能发生略微变化，若在特殊条件下工作，请咨询工厂。

It is TESTEQ’s understanding that the unit will be used in a non-hazardous environment（test and store flammable, explosive, biological sample）.The unit is not designed for use with or for the purpose of processing hazardous materials.If hazardous materials are involved,pelese consult factory for an alternative quote for a properly designed unit.

该类试验箱不能用于易燃、易爆、腐蚀性测试品及生物试样的试验和储存，如果样品涉及这些危险品，请联系厂家。

The addition of accessories may impact performance. Specifications subject to change without notice.

另外的配件可能会影响性能，规格型号如果变更，恕不另行通知

please submit a performance evaluation request to ensure selection of the correct model for you test requirement. We also have more products not enumerated.

我们还有更多的产品型号没有一一列举，请告知我们你们所需要的技术要求，以确保选择正确的试验箱，以满足你们的测试要求。

Site requirements also include a drain for con-densate water from the chamber,and ample spacing for service and proper air cooling.

该设备对场地的要求，除了足够的实验室空间，还包括处理冷凝水的地漏，以及适当的实验室温度。

These specifications are for reference only. Detailed and current specifications can be obtained from your local sales representative.

这些指标仅供参考。更详细的技术要求，可咨询您当地的销售代表。
