快速温度变化试验箱

EATH Series Fast Temperature Cycling Chambers

快速温度循环试验箱

 High product reliability is a basic requirement for today’s competitive market and is often the only difference between the various manufacturers. These chambers feature the classic TESTEQ look of stainless steel with a new, modern style. The adjustable controller pod will please users of different heights. And sound levels are lower, even for air-cooled models. Faster chambers for production and qualification level testing -Change rates up to 25°C per minute. All models feature three levels of overheat protection.

当今激烈竞争的市场对产品的可靠性提出了更高的要求，普通的温度变化速率已不能满足对产品可靠性的测试，快速温度变化试验箱很好地解决了这一问题。EATH系列快速温度变化试验箱，是TESTEQ公司最经典的试验箱之一，温度变化率可调，最高可达到25℃/min的温度变化速率，噪音和振动通过特殊处理，达到较为理想的效果，甚至可以采用风冷冷凝器。出于安全考虑，所有型号的快速温度变化试验箱都有四重过热保护。

Standard Features标准配置

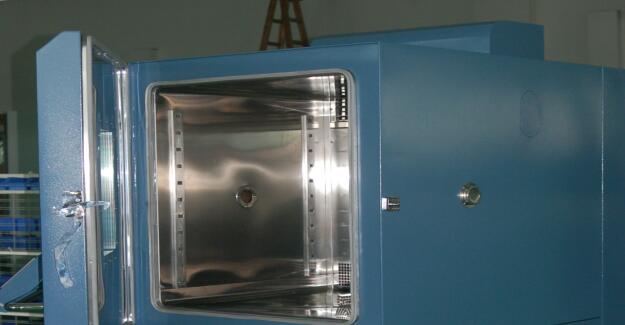

■Non-metallic thermal break around the doorframe keeps extreme temperatures in the chamber from being transferred to the exterior.

■Two diameter φ100mm holes(Distributed in the right and left sides) includes two flexible silicone plugs.

■Dew trays on the door and under the doorframe catch drips when opening after humidity testing.

■Adjustable stainless steel shelf, with heavy-duty support rails,holds 50 kg.

■Heavy-duty casters have integrated adjustable feet for level-ing and fixing the unit.

■Residual current circuit breaker of main power supply

■Illuminating lamp, over temperature protection setting device, emergency switch, run indicator, failure indicator, buzzer

■Fit with 4 electrothermal condensation-proof 4-layer hollow glass observation windows

■门框及厢框预埋有防露点加热丝，当试验箱内实际温度低于露点温度时，加热系统自动开启，以放置室内极端温度被传递到外部

■两个直径φ100mm的引线孔（分布在左右两侧的盖板上），包括两个弹性软胶塞

■门和门框下铺有露点滴水盘，在做完湿度后方便凝结水排除箱体

■可调节的不锈钢货架，重型支撑导轨，标准承重50Kg，加重型承重可达到100Kg

■重型移动脚轮和调节平衡用的重型脚杯

■主电源漏电保护器

■照明灯、超温保护设定装置、急停开关、运行指示灯、故障指示灯、蜂鸣器

■电加热四层中空玻璃观察窗

 700 and 800 Programmer Touch-screen controller

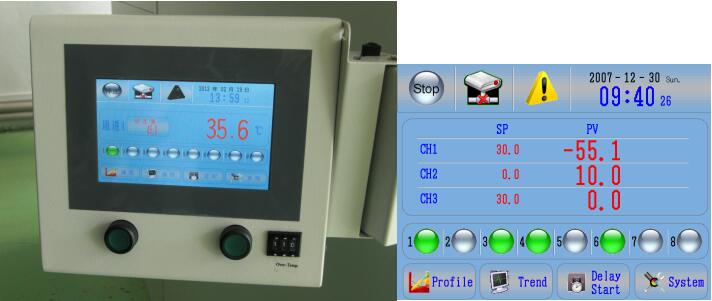

◆With a brilliant 7"&8" color touch screen display, the powerful 700&800 Programmer Controller is TESTEQ ready, making operations and data collection easier and more reliable than ever before. Our controller has a Windows look and feel to support familiar and robust operations. The 700&800 is ethernet-compatible and web-enabled with an Internet-ready front end for virtual anytime/anywhere access. Multi-level, password-based security protects sensitive data. The 700&800 can be easily retrofitted on-site to existing chambers.

◆Run mode :Program mode, fixed value mode

◆Program capacity :Edit: up to 20 programs, up to 50 steps per program, 20 loops can be set(Each loop step has up to 999 times of loop)

◆Display resolution :Temperature: 0.1℃; time: 0.1 minute; Humidity: 0.1％RH

◆Communication function :RS-485 interface, which has local and remote communication functions (it is required to fit centralized monitoring software, RS-485/RS232 converter, it will occupy a COM port and a USB port of PC machine); up to 16 devices can be connected, the cumulative length of cable is up to 800m.

◆Failure alarm and reason, dispose prompt function; power failure protection function; upper & lower limits of temperature protection function; timing function (auto start and auto stop running), self-diagnostic function.

◆7"彩色触摸屏显示器，强大的编程控制系统，操作和数据处理更方便更可靠，我们的控制器具有Windows外观，便于使用，可以与以太网兼容，虚拟网络实现在任何时间和地点对设备访问。多层次数据处理功能。

◆运行方式：程序方式、定值方式

◆程序容量：可编辑：20个程序，每个程序最大50步，可设20个循环(每个循环步最大999次循环)

◆显示分辨率：温度0.1℃，时间0.1分钟，湿度0.1％RH

◆通讯功能：RS-485接口，具有本地和远程通讯功能(需配集中监控软件、RS-485/RS-232转换器，需占用PC机的COM口和USB口各一个)；最多可同时连接16台设备，电缆累计长度最大800m

◆故障报警及原因、处理提示功能；断电保护功能；上下限温度保护功能；定时功能(自动启动及自动停止运行)、自诊断功能

Optional Product Temp. Control

●Monitors product temperatures

●Faster product change rates

●Shortens testing time

○During cycling tests, product temperature can lag behind air temperatures by 20 degrees or more. Our optional product temperature control feature lets you drive faster change rates by directly monitoring product temperature and overshooting normal air-temperature set points until the product approaches the desired temperature. And by achieving product temperature faster, soak periods can begin earlier, saving significant time.

○As shown in the example at left, setting the chamber for a 20°C air temperature boost (air at -60°C) achieved the -40°C product temperature in just 16 minutes, compared for nearly 50minutes with the chamber air set at -40°C

可选择产品表面温度控制

●检测样品表面温度

●更快的产品温变率

●缩短测试时间

○在循环测试中，产品的温度可落后出风口温度20℃或者更多。我们可选择产品温度控制功能，直接控制产品的温度变化率，通过直接的产品监控温度和过度正常温度设定点，使产品温度直接接近所需的温度。提前使产品进入快速温度变化的热交换时间，更快地实现产品温度变化率，节省时间显著。

○左侧曲线所示的例子中，在设定箱内温度为+80℃～-40℃之间变化时，如设定20℃温度前置（产品控制点低温实际为-60℃），样品表面温度只需16分钟便能到达-40℃，如果不采用产品温度控制，则需要50分钟才能到达-40℃，因此，采用产品温度控制可以节省34分钟。

（模块五）

Performance is based upon 50 Hz and laboratory ambient conditions of 23.9℃,and may vary slightly at other temperature and humidity levels. Chambers are designed for use under normal laboratory operating conditions.For other applications,please consult TESTEQ.

设备的性能是在50Hz和23.9℃的实验室环境条件下测的，而在其他温度和湿度条件下性能可能发生略微变化，若在特殊条件下工作，请咨询工厂。

It is TESTEQ’s understanding that the unit will be used in a non-hazardous environment（test and store flammable, explosive, biological sample）.The unit is not designed for use with or for the purpose of processing hazardous materials.If hazardous materials are involved,pelese consult factory for an alternative quote for a properly designed unit.

该类试验箱不能用于易燃、易爆、腐蚀性测试品及生物试样的试验和储存，如果样品涉及这些危险品，请联系厂家。

The addition of accessories may impact performance. Specifications subject to change without notice.

另外的配件可能会影响性能，规格型号如果变更，恕不另行通知

please submit a performance evaluation request to ensure selection of the correct model for you test requirement. We also have more products not enumerated.

我们还有更多的产品型号没有一一列举，请告知我们你们所需要的技术要求，以确保选择正确的试验箱，以满足你们的测试要求。

Site requirements also include a drain for con-densate water from the chamber,and ample spacing for service and proper air cooling.

该设备对场地的要求，除了足够的实验室空间，还包括处理冷凝水的地漏，以及适当的实验室温度。

These specifications are for reference only. Detailed and current specifications can be obtained from your local sales representative.

这些指标仅供参考。更详细的技术要求，可咨询您当地的销售代表。

（模块六）

※3A full range, modular humidity system can be added to ETH-Series Test Chambers either at the time of purchase or as a field retrofit. Performance specifications for the humidity module are characterized by a wide range, precise uniformity and tight control.

湿度是模块化的设计，加湿系统可以在选购产品时安装，也可以在客户现场改装。湿度的模块性能广泛，精确性和均匀性收到严格控制。

※ 4 At a dry bulb temperature above +20°C .此指标在20℃的干球温度以上测的的条件。

※ 5Based upon temperature uniformity specifications.根据温度均匀性规范的指标

The red area shows the standard humidity range. The green area indicates the optional low-humidity range.

红色区域显示的是标准温湿度范围。绿色区域表示可选择的低温低湿范围。
